QMetry and Reports Installation on AWS (using RDS & ECR) for RHEL8, RHEL9 and RHEL10
In this guide, we'll run you through installing QMetry Database on AWS RDS, QMetry Test Management application, and QMetry Reporting Tool in a 3 Tier Architecture on AWS.
This installation requires MySQL v8.4.8 on AWS RDS and installs QMetry over Apache Tomcat 11.0.5 and Open JDK 17.0.2 in a podman container.
AWS 3 Tier Architecture
3 Tiers | Installations |
|---|---|
Server 1 | QMetry Application |
Server 2 | QMetry Reports |
AWS RDS 1 | QMetry Database |
AWS RDS 2 | QMetry Reports Database |
Pre-requisites
Confirm every item in the Pre-requisites for QMetry Application and Report Server Installation document. After that confirm the following:
Prerequisite | What to confirm |
|---|---|
Operating System | Linux - RHEL8, RHEL9 and RHEL10 Rootless or non-root user installations are not supported on RHEL OS. |
Required commands | unzip, wget, curl, and vim commands are supported. |
Internet access | Internet access is required to download and install Podman and QMetry installation images. |
Firewall and SELinux | Both are disabled on every server during installation. |
Proxy Servers | No proxy blocks downloads from the internet. |
Server communication | The application and report servers can reach each other on the required ports. |
Open ports | Ports 80, 443, 8080 and 3306 are free on the relevant servers. |
Root access | Podman installation requires root user access. |
Disk space | The Podman and data directories have enough free space. |
Installation files | Get the QMetry_RHEL_Installer_ECR.zip files and podman credentials from QMetry Support. |
In addition to this, ensure the following:
Four Servers are required: 2 AWS RDS for QMetry and Reports Databases, QMetry Application, and QMetry Reporting. These servers should be able to communicate with each other on respective ports as mentioned in the table below. Security groups should be configured accordingly. Refer QMetry Deployment Document for the hardware requirements.
QMetry Application and Report Servers should be able to communicate over 80/443 and Database Server 3306/DB Ports. Port 8080 should be enabled/open on Reports Server to allow connections from QMetry application server. The ports 80/443 and 3306 on the respective servers should be free and should not be in use by other applications. QMetry App server should be able to communicate with the report's server on port 3306.
If you are planning Jira integration with QMetry and Jira is running on https, make sure your QMetry is also running over https protocol. QMetry and Jira should run on the same protocol.
By default, podman is managing storage under “/var/lib/” directory on the host machine. Make sure that both the directories have required disk space available as per usage requirement of QMetry application.
QMetry Application's Server and QMetry Report's Server must have appropriate IAM roles assigned to communicate with various other AWS services like AWS ECR, AWS RDS, etc.
The following Ports should be open:
Installation
Ports that need to be enabled and should be available for use
AWS RDS - QMetry Application Database & QMetry Reports Databases
3306 for both RDS
QMetry Application
80/443
QMetry Report
80/443, 8080 & 3306
AWS EFS
2049
AWS ElastiCache (if enabling the optional Redis Cache Cluster)
6379
Configure AWS EC2 to authenticate with AWS ECR Service
Install and configure AWS Credential Helper. If you want to use AWS IAM Role based authentication mechanism for ECR authentication from AWS EC2, then follow this step. Else, skip this step and make sure that you have done authentication with AWS ECR from QMetry and Report EC2 server before moving to the next step. Reference Github Credential Helper
Placing QMetry and Report Podman Images on the AWS ECR
Get Podman Image and place it on ECR. Perform these steps from the machine from which Docker Hub Container Image Library | App Containerization is accessible. It is required to have podman tool installed on this machine. Also, make sure that you have credentials for the ECR. In this step, we will download QMetry and Report podman image from podman repository and push it to the ECR repository.
Follow the steps mentioned below.
Step 1: Podman Login
Run the following command. When prompted, enter the Podman credentials provided with the installation package.
podman login
Step 2: Pull the QMetry and Report podman images
Pull the QMetry and Report podman images from podman repository.
podman pull qmetry/qmetry:latest podman pull qmetry/qmetry:reports_latest
Step 3: Tag QMetry and Report podman images with the ECR.
podman tag qmetry/qmetry:latest <ECR_Repo_Url>/qmetryapp:latest podman tag qmetry/qmetry:reports_latest <ECR_Repo_Url>/qmetryreport:latest
Step 4: Login with AWS ECR
If you have set up and configured AWS Credentials Helper utility on EC2 servers, then skip this step and move to the next step.
Else, login with AWS ECR. If you have ECR credentials, then log in with ECR using it.
podman login <ECR_Repo_Url>
If you have AWS CLI installed and configured on EC2, then you can use the following method to do authentication with ECR.
aws ecr get-login-password --region <regionID> | podman login --username AWS --password-stdin <ECR_Repo_Url>
Step 5: Push QMetry and Report podman images to ECR
podman push <ECR_Repo_Url>/qmetryapp:latest podman push <ECR_Repo_Url>/qmetryreport:latest
Create and Configure 2 RDS for QMetry Application Database and QMetry Reports Database
Create and configure the two RDS instances
Create two RDS instances that share a common parameter-group family, one for the Application database and one for the Reports database.
Step 1. Create DB parameter groups
To create database parameter groups, perform the following steps:
Go to AWS Management Console and open the Amazon RDS console.
In the navigation pane, select Parameter groups.
Click Create parameter group.
Parameter group family: Select mysql8 as DB parameter group family.
Group name: Provide the name of the new DB parameter group.
Description: Provide a description for the new DB parameter group.
Click Create.
Repeat to create a second parameter group for the Reports RDS.
Step 2. Edit the parameter groups
Application RDS parameter group
Select the App parameter group and set these values:
Parameter | Value |
|---|---|
binlog_format | ROW |
character_set_client | utf8mb4 |
character-set-client-handshake | 0 |
character_set_server | utf8mb4 |
collation_server | utf8mb4_unicode_ci |
group_concat_max_len | 500000000 |
innodb_autoinc_lock_mode | 2 |
innodb_thread_concurrency | 10 |
log_bin_trust_function_creators | 1 |
lower_case_table_names | 1 |
max_allowed_packet | 536870912 |
sql_mode | NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,ERROR_FOR_DIVISION_BY_ZERO |
thread_cache_size | 200 |
innodb_log_buffer_size | 536870912 |
innodb_log_file_size | 1073741824 |
Report RDS parameter group
Select the Report parameter group and set these values:
Parameter | Value |
|---|---|
character-set-client-handshake | 0 |
group_concat_max_len | 500000000 |
innodb_autoinc_lock_mode | 2 |
innodb_strict_mode | 0 |
lower_case_table_names | 1 |
max_allowed_packet | 536870912 |
thread_cache_size | 200 |
Step 3. Create the Application Database RDS
To create application database RDS, perform the following steps:
Create an RDS with MySQL database version 8.4.8
Provide the RDS Name, Username and Password.
Select the Application DB Parameter Group from Step 2.
Start the service: RDS → Databases → Actions → Start.
Connect to the Application RDS and run the following so MySQL bin logs survive restarts (required for dependable report sync):
call mysql.rds_set_configuration('binlog retention hours', 24);Note
Save the Application RDS username, password, schema name, and endpoint. You will need them during installation.
Step 4. Create the Reports Database RDS
To create Reports Database RDS, perform the following steps:
Create an RDS with MySQL database version 8.4.8
Provide RDS Name, Username and Password
Select the Reports DB parameter group from Step 2.
Connect to the Reports RDS and create the analytics schema:
CREATE SCHEMA `qtmanalytics` DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
Note
Save the Reports RDS username, password, schema name, and endpoint.
Install the QMetry Application
Prepare shared storage (EFS)
Create an EFS file system that all QMetry application nodes can share. AWS EFS must be accessible to all EC2 servers of QMetry application. Ensure that required port #2049 is open for incoming connections in the security group to allow connections from AWS EC2.
When creating the application EC2 instance, go to Configure Storage and select File Systems. Select File System created in the previous step.
Refer to the AWS Official Documentation for attaching EFS file system when creating an EC2 instance.
Mount the EFS to a directory in the EC2 server to a directory, such as /opt/qmetryapp, and specify that same directory as the application directory during QMetry installation.
Install QMetry Application
To install QMetry Application, perform the following steps:
Step 1: Extract the installation files
Copy QMetry_RHEL_Installer_ECR.zip installation file received from QMetry Support to your server. Go to the directory where this file is kept and unzip the file.
unzip QMetry_RHEL_Installer_ECR.zip
Step 2: Run the installer
Run the following commands to start the installer.
cd QMetry_RHEL_Installer_ECR sudo su chmod +x install.sh ./install.sh
Step 3: Online Install Prompt
Options | Allowed Values | Default Value | Recommended Value |
|---|---|---|---|
Do you want to make an online installation (Y/N)? | Y, y, N, n | Y | Y |
Step 4: Podman Verification
Enter the podman credentials shared as a part of the installation package.
Step 5: Main Installation Menu
Type 2 to install the QMetry application.
Step 6: Specify the container repository URL
Enter podman repository URL: <input_ecr_url>
If AWS server has appropriate permission to download podman image from the ECR, then installation process will move forward with the next step. Otherwise, it will prompt for adding correct authentication details for the specified ecr url.
Step 7: Specify the application data directory
Enter a directory path on the host machine to store QMetry data such as attachments, licenses, imports, and exports. You can specify any valid path, and the installer creates the directory automatically if it does not exist.
Also, specify directory path for storing QMetry application's log files. This directory must not be shared across the multiple nodes of the QMetry application.
Options | Description | Example |
|---|---|---|
Please enter QMetry application directory | Enter the EFS file system directory mounted for QMetry installation from the pre-requisites section above step 1. | /opt/QMetry_RHEL_Installer_ECR |
Please enter QMetry application's log directory (not shared) | The directory should be a dedicated, non-shared location where the application's log files are stored for monitoring and troubleshooting. | /home/QMetry_RHEL_Installer_ECR_logs |
Note
Recommended: Back up the application data directory on a regular schedule. Periodic backups help prevent data loss if a disaster occurs.
Step 8: Enter the configuration parameters
Enter the following parameters when prompted.
Options | Details | Default Value | Example |
Enter QMetry Database Hostname | Enter QMetryDatabase Host as DNS/IP Address | <RDS DB Endpoint> | Enter RDS DB Endpoint |
Enter QMetryDatabase Port | Enter QMetryDatabase Port. If it is unchanged, use "3306" as the Database port. | 3306 | 3306 |
Enter QMetryDatabase Schema | QMetry Application Database schema name. | qmetry | qmetry |
Enter QMetryDatabase Username | QMetry Application Database root user name | - | dbadmin |
Enter QMetry Database Password (root user) | Enter QMetryApplication Database Password for the root user. | - | QMetry@123 |
Enter QMetry User (admin) Email (admin user) | Enter QMetry user email address for Admin. | - | |
Enter QMetry User (admin) Password | Enter QMetry user password for Admin. | - | Admin@123 |
Enter Min. Heap Memory for the webserver | Enter Heap Memory in GB(s) | 2 | 2 |
Enter Max. Heap Memory for the webserver | Enter Heap Memory in GB(s) | 4 | 4 |
Enter QMetry Database Connection Pool Size | Enter Pool Size in number format | 100 | 100 |
The installation may take a while.
Step 9: Verify the podman
podman ps
Step 10: Get QMetry License and Install it
Choose the option that matches your license type.
For users evaluating QMetry: Use the evaluation license, valid for 30 days, that you received with the installation.
For users requiring a commercial license
QMetry Support needs your server's domain name and MAC address.
Find the MAC address with ifconfig, then email both to qtmprofessional@qmetrysupport.atlassian.net.
When you receive license.key, follow Steps to Apply License File.
Step 11: Access the Application
Open the QMetry application in a browser at the following address, where you substitute your own value. http://<your IP address OR domain name>
Log in with the Default QMetry credentials.
Username: admin
Password: <user specified password in Step # 8 >
The MySQL database is installed on port 3306 with the following details.
Username: root
Password: <user specified password in Step # 8 >
Step 12: Update the administrator profile
After you complete the previous steps, log in to the QMetry application and update the administrator profile.
Go to "Admin" Profile and Edit the Profile.
Update the administrator email address in the Email field.

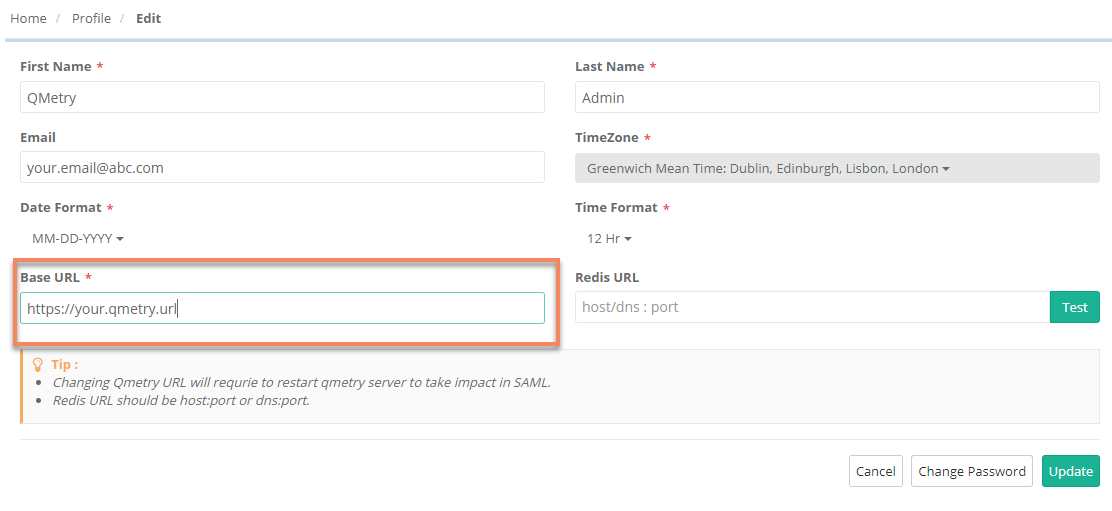

In the Base URL field, enter your QMetry URL.
Select Update.
 |
Step 13: Configure additional Tomcat settings
QMetry installs with a default configuration for minimum and maximum heap memory. You can adjust these settings to match your hardware configuration. For more information, refer to Additional Configuration for more details.
Install QMetry Reports
Note
If you have purchased Advanced Reporting, then you will need a separate server for installing QMetry Reports.
Steps to Follow for QMetry Report Installation
To install QMetry Reports on the second server, perform the following steps:
Step 1: Get the installation zip file
Connect to the report server. Upload the QMetry_RHEL_Installer_ECR.zip to the /opt directory of the Report server and extract it with the following commands.
sudo su - cd /opt unzip QMetry_RHEL_Installer_ECR.zip cd QMetry_RHEL_Installer_ECR/
Step 2: Run the reports installer
chmod +x install.sh ./install.sh
Step 3: Online Install Prompt
Options | Allowed Values | Default Value | Recommended Value |
|---|---|---|---|
Do you want to make an online installation (Y/N)? | Y, y, N, n | Y | Y |
Step 4: Podman Verification
Enter the podman credentials that were shared as part of the installation package.
Step 5: Main Installation Menu
Type 3 to install QMetry Reports.
Step 6: Enter the report configuration parameters
After the installation starts, enter the following parameters when prompted.
Options | Details | Default Value | Example |
|---|---|---|---|
Enter Number of CPU's to allocate | Allocate 3/4th of the available CPUs. For example, if CPU has 8 cores, enter 6. To check total CPUs, run the command : lscpu | 4 | 6 |
Enter Memory to allocate in GB(s) | Entered memory would be used by the sync job while running full sync of data. Enter 3/4th of total memory available on the server. For example, if the memory on the server is 24 GB, enter 18. | 4 | 18 |
Wait for the script file to finish executing.
Options | Details | Example |
|---|---|---|
Enter Mysql Database Host IP / DNS Name (Qmetry) | Enter Database Host Public IP/DNS of QMetry application. | Specify QMetry App RDS DB Endpoint |
Enter Mysql Database Port (Qmetry) | Enter Database Port of QMetry application. If it is unchanged, use "3306" as Database port. | 3306 |
Enter Mysql Database Schema (Qmetry) | Enter Database schema name of QMetry application. | qmetry |
Enter Mysql Database Username (Qmetry) | Enter Database username of QMetry application. If it is unchanged, use "root" as username. | root |
Enter Mysql Database Password (Qmetry) | Enter Database password of QMetry application. | QMetry@123 |
Enter Mysql Database Host IP / DNS Name (Reports) | Enter Database Host Public IP/DNS of QMetry Report. | Specify QMetry Reports RDS DB Endpoint |
Enter Mysql Database Port (Reports) | Enter Database Port of QMetry Report Database. If it is unchanged, enter "3306" as Database Port. | 3306 |
Enter Mysql Database Schema (Reports) | Enter Database schema name as “qtmanalytics“ for QMetry Reports Database. | qtmanalytics |
Enter Mysql Database Username (Reports) | Enter Database username of QMetry Reports Database. If it is unchanged, use "root" as username. | root |
Enter Mysql Database Password (Reports) | Enter Database password of QMetry Reports Database. | QMetryreports@!Nf0# |
Enter Port To Start SyncJob (Reports) | Reports Sync Job runs from this port - 8080. | 8080 |
Do you want to Run Force Sync Now? (y/n) | Enter y to sync all the QMetry data to Reports Database with the current script. Always enter y at the time of fresh reports install. | Y |
Enter Memory to allocate in GB(s) to Spark | Entered memory would be used by the sync job while running full sync of data. Enter 3/4th of total memory available on the server. For example, if the memory on the server is 24 GB, enter 18. | 18 |
After successful installation of QMetry Report, you will see the message "QMetry Report Installation is complete".
Note
In cases when you need to force sync to re-sync any missing data, just repeat step 6, and skip all parameter details (by hitting enter) and just enter y when prompted for a force sync.
Wait for the script to finish executing.
Step 7: Verify the podman
podman ps
 |
Step 8: Restart Report Services
systemctl restart qmetry-reports
Wait for about 2 minutes before proceeding with the next step.
Step 9: Configure the database connection
Log into QMetry with 'admin' user login, and configure the reports server URL in the configuration menu.
Login to QMetry with administrator credentials and go to Customizations.

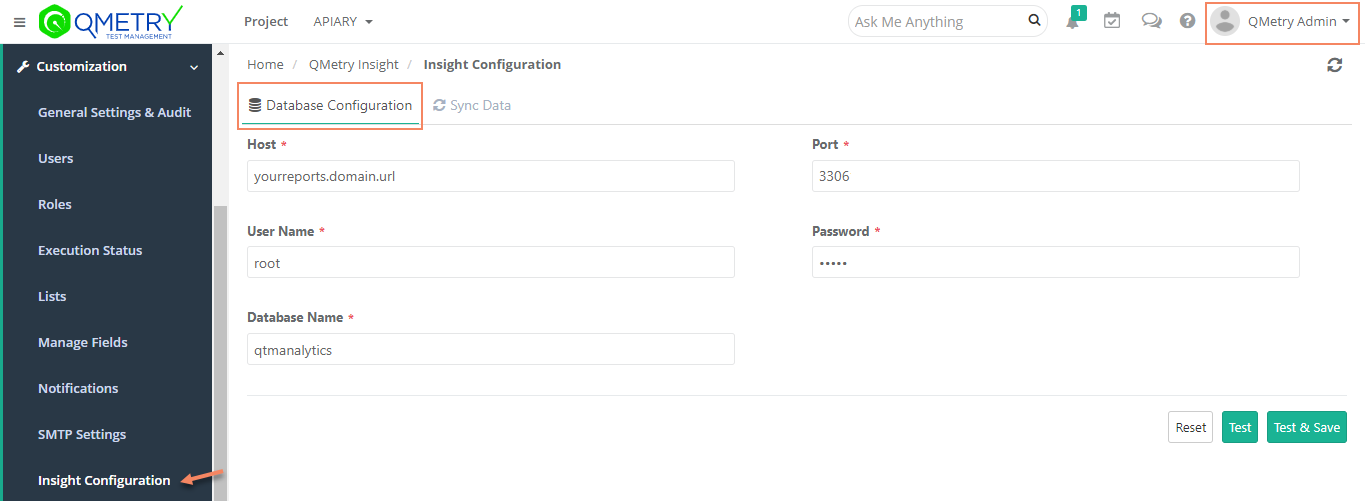

Select Insight Configuration and open Database Configuration tab.
Under Database Configuration tab, enter the following details:
Host: Reports Server Host Public IP/DNS.
Port: 3306
Username: root
Password : <Enter Report database password>
Database Name: <Report DB schema specified during installation>
Select Test to confirm a successful connection, and then select Test & Save.
Step 10: Set up the report data sync

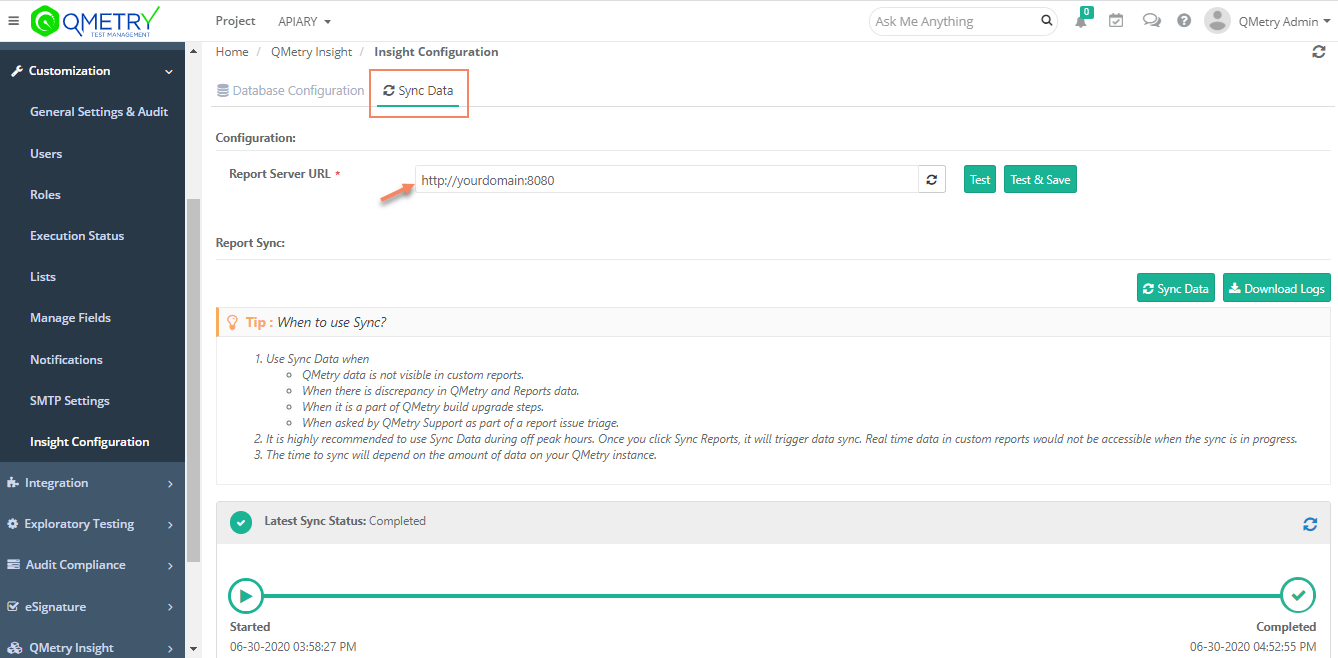

On the Sync Data tab, set up the Report Data Sync from your reports server to QMetry Reporting.
Report Server URL: Enter your report server domain URL followed by port 8080. Confirm that port 8080 is open on the report server.
Select Test to confirm a successful connection and then select Test & Save.
Note
Run Sync Data the first time after you install QMetry reports installation. The time that the sync takes depends on the amount of data in QMetry. You can monitor sync progress and status in the interface. QMetry custom reports are not accessible while the sync runs. Run the sync only during off-peak hours.
Users can start using QMetry Reports when the sync is completed. QMetry remains available during this time.
Enabling Redis Caching Cluster (optional)
QMetry provides a capability for improving the overall performance and scalability even more by setting up Redis Caching Cluster. This step is optional. Follow the below steps to configure Redis Cache.
Create a Redis cluster using AWS ElastiCache service for the Redis v7.0.7
AWS ElastiCache Redis Cluster should be accessible to all the EC2 servers of QMetry application for caching related communication and configuration.
Ensure port #6379 is opened for incoming connections in the security group to allow connections from AWS EC2.
Port #6379 should be free and not in use by other applications.
Configure Redis connection details in QMetry.

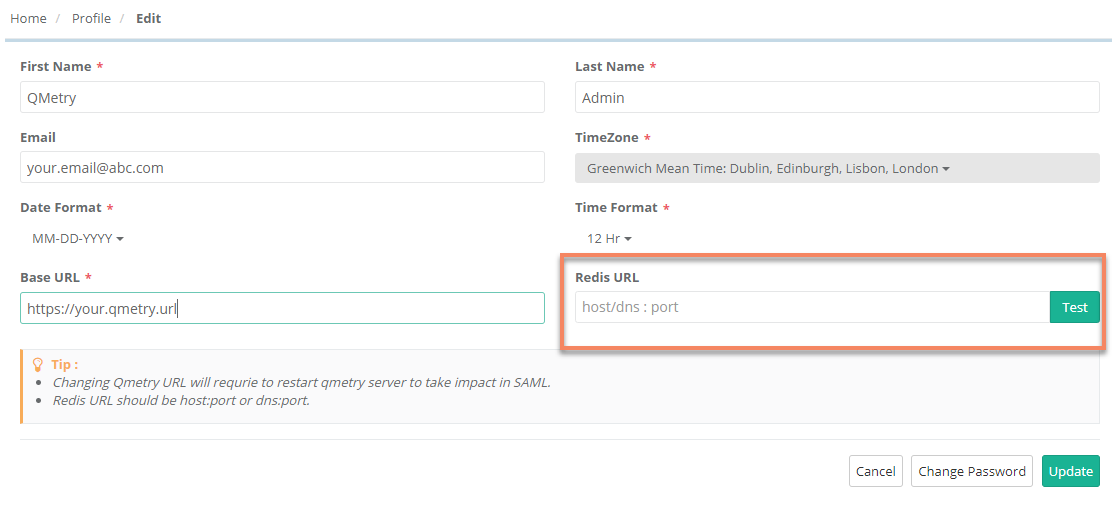

Login to QMetry Application using “admin“ account, and go to the top right corner admin > Profile section. Edit the Profile.
Enter the Redis URL and Test. In case, the test fails, check and ensure connectivity between ElastiCache Redis Cluster and AWS EC2.
Upon successful Test, update the details.
Install Automation API Features
Installing the Automation API with your on-premises QMetry installations will enable several automation API related features including faster automation result file imports into QMetry. If you plan to use Automation APIs to import test results into QMetry, refer to Installation for Automation API.
Get Support
Please generate a support ticket on the Support Portal for a detailed installation guide or contact your sales representative.
