QMetry and Reports Installation on AWS Cloud Linux - 3 Tier
This guide covers installing the QMetry database on AWS RDS, the QMetry Test Management application, and the QMetry Reporting tool in a 3-tier architecture on AWS.
The installation requires MySQL v8.4.8 on AWS RDS and deploys QMetry over Apache Tomcat 11.0.5 and OpenJDK 17.0.2 in a Docker container.
AWS 3 Tier Architecture
Server 1 | QMetry App |
Server 2 | QMetry Reports |
AWS RDS 1 | QMetry Database |
AWS RDS 2 | QMetry Reports Database |
Pre-requisites
Confirm all of the following before you begin. For details, refer to the Pre-requisites of QMetry Application and Report Server Installation document.
Supported OS: Ubuntu 24.04 or Amazon Linux 2024. No other OS is certified.
Four servers are required: 2 AWS RDS for QMetry and Reports Databases, QMetryApplication, and QMetry Reporting.
These servers should be able to communicate with each other on respective ports.
Refer QMetry Deployment Document for the architectural requirements.
Every server supports the commands: unzip, wget, curl, and vim.
You can run installation commands as the root user.
You have QMetry_Linux_Installer.zip and Docker credentials from QMetry Support.
QMetry Application and Reports run on the same protocol. If integrating with Jira over HTTPS, run QMetry on HTTPS too.
Note
Docker stores data under /var/lib/ by default, and the installer also asks for a QMetry data location. Ensure both directories have enough disk space.
Ports to open (inbound)
Installation | Ports that need to be enabled |
|---|---|
AWS RDS - QMetry and Reports Databases | 3306 (both RDS) |
QMetry Application | 80/443 |
QMetry Reports | 80/443, 8080, & 3306 |
AWS EFS | 2049 |
AWS ElastiCache (if enabling the optional Redis Cache Cluster) | 6379 |
Create and Configure 2 RDS for QMetry Application Database and QMetry Reports Database
Create and configure the two RDS instances
Create two RDS instances that share a common parameter-group family, one for the Application database and one for the Reports database.
Step 1. Create DB parameter groups
To create database parameter groups, perform the following steps:
Go to AWS Management Console and open the Amazon RDS console.
In the navigation pane, select Parameter groups.
Click Create parameter group.
Parameter group family: Select mysql8 as DB parameter group family.
Group name: Provide the name of the new DB parameter group.
Description: Provide a description for the new DB parameter group.
Click Create.
Repeat to create a second parameter group for the Reports RDS.
Step 2. Edit the parameter groups
Application RDS parameter group
Select the App parameter group and set these values:
Parameter | Value |
|---|---|
binlog_format | ROW |
character_set_client | utf8mb4 |
character-set-client-handshake | 0 |
character_set_server | utf8mb4 |
collation_server | utf8mb4_unicode_ci |
group_concat_max_len | 500000000 |
innodb_autoinc_lock_mode | 2 |
innodb_thread_concurrency | 10 |
log_bin_trust_function_creators | 1 |
lower_case_table_names | 1 |
max_allowed_packet | 536870912 |
sql_mode | NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,ERROR_FOR_DIVISION_BY_ZERO |
thread_cache_size | 200 |
innodb_log_buffer_size | 536870912 |
innodb_log_file_size | 1073741824 |
Report RDS parameter group
Select the Report parameter group and set these values:
Parameter | Value |
|---|---|
character-set-client-handshake | 0 |
group_concat_max_len | 500000000 |
innodb_autoinc_lock_mode | 2 |
innodb_strict_mode | 0 |
lower_case_table_names | 1 |
max_allowed_packet | 536870912 |
thread_cache_size | 200 |
Step 3. Create the Application Database RDS
To create application database RDS, perform the following steps:
Create an RDS with MySQL database version 8.4.8
Provide the RDS Name, Username and Password.
Select the Application DB Parameter Group from Step 2.
Start the service: RDS → Databases → Actions → Start.
Connect to the Application RDS and run the following so MySQL bin logs survive restarts (required for dependable report sync):
call mysql.rds_set_configuration('binlog retention hours', 24);Note
Save the Application RDS username, password, schema name, and endpoint. You will need them during installation.
Step 4. Create the Reports Database RDS
To create Reports Database RDS, perform the following steps:
Create an RDS with MySQL database version 8.4.8
Provide RDS Name, Username and Password
Select the Reports DB parameter group from Step 2.
Connect to the Reports RDS and create the analytics schema:
CREATE SCHEMA `qtmanalytics` DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
Note
Save the Reports RDS username, password, schema name, and endpoint.
Install the QMetryApplication
Prepare shared storage (EFS)
Create an EFS file system that all QMetry application nodes can share. AWS EFS must be accessible to all EC2 servers of QMetry application. Ensure that required port #2049 in open for incoming connections in the security group to allow connections from AWS EC2.
When creating the application EC2 instance, go to Configure Storage and select File Systems. Select File System created in the previous step.
Refer to the AWS Official Documentation for attaching EFS file system when creating an EC2 instance.
Mount the EFS to a directory in the EC2 server to a directory, such as /opt/qmetryapp, and specify that same directory as the application directory during QMetry installation.
Install QMetry Application
To install QMetry Application, perform the following steps:
Step 1: Extract the installation files
Copy QMetry_Linux_Installer.zip installation file received from QMetry Support to your server. Go to the directory where this file is kept and unzip the file.
unzip QMetry_Linux_Installer.zip
Step 2: Run the installer
Run the following commands to start the installer.
cd QMetry_Linux_Installer sudo su chmod +x install.sh ./install.sh
When the installer asks whether to perform an online installation, respond as shown in the following table.
Options | Allowed Values | Default Value | Recommended Value |
|---|---|---|---|
Do you want to make an online installation (Y/N)? | Y, y, N, n | Y | Y |
Enter the docker credentials shared as a part of the installation package. The installer then displays the QMetry Installation Menu. Enter 2 to install the QMetry application.
Step 3: Specify the application data directory
Enter a directory path on the host machine to store QMetry data such as attachments, licenses, imports, and exports. You can specify any valid path, and the installer creates the directory automatically if it does not exist.
Options | Description | Example |
|---|---|---|
Please enter QMetry application directory | Enter the EFS file system directory mounted for QMetry installation from the pre-requisites section above step 1. | /opt/qmetryapp |
Note
Recommended: Back up the application data directory on a regular schedule. Periodic backups help prevent data loss if a disaster occurs.
Step 4: Enter the configuration parameters
Enter the following parameters when prompted.
Options | Details | Default Value | Example |
Enter QMetry Database Hostname | Enter QMetryDatabase Host as DNS/IP Address | <RDS DB Endpoint> | Enter RDS DB Endpoint |
Enter QMetryDatabase Port | Enter QMetryDatabase Port. If it is unchanged, use "3306" as the Database port. | 3306 | 3306 |
Enter QMetryDatabase Schema | QMetry Application Database schema name. | qmetry | qmetry |
Enter QMetryDatabase Username | QMetry Application Database root user name | - | dbadmin |
Enter QMetry Database Password (root user) | Enter QMetryApplication Database Password for the root user. | - | QMetry@123 |
Enter QMetry User (admin) Email (admin user) | Enter QMetry user email address for Admin. | - | |
Enter QMetry User (admin) Password | Enter QMetry user password for Admin. | - | Admin@123 |
Enter Min. Heap Memory for the webserver | Enter Heap Memory in GB(s) | 2 | 2 |
Enter Max. Heap Memory for the webserver | Enter Heap Memory in GB(s) | 4 | 4 |
Enter QMetry Database Connection Pool Size | Enter Pool Size in number format | 100 | 100 |
The installation may take a while.
Step 5: Verify the docker
docker ps
Step 6: Get QMetry License and Install it
Choose the option that matches your license type.
For users evaluating QMetry
Use the evaluation license, valid for 30 days, that you received with the installation.
For users requiring a commercial license
You must generate a license using the server MAC address and domain name.
Get MAC address
ifconfig
Send the domain name and MAC address to QMetry Support at qtmprofessional@qmetrysupport.atlassian.net to request your license.
Once you receive license.key from QMetry Support, you can follow the Steps to Apply License file .
Step 6: Access the Application
Open the QMetry application in a browser at the following address, where you substitute your own value. http://<your IP address OR domain name>
Log in with the Default QMetry credentials.
Username: admin
Password: <user specified password in Step # 4 >
The MySQL database is installed on port 3306 with the following details.
Username: root
Password: <user specified password in Step # 4 >

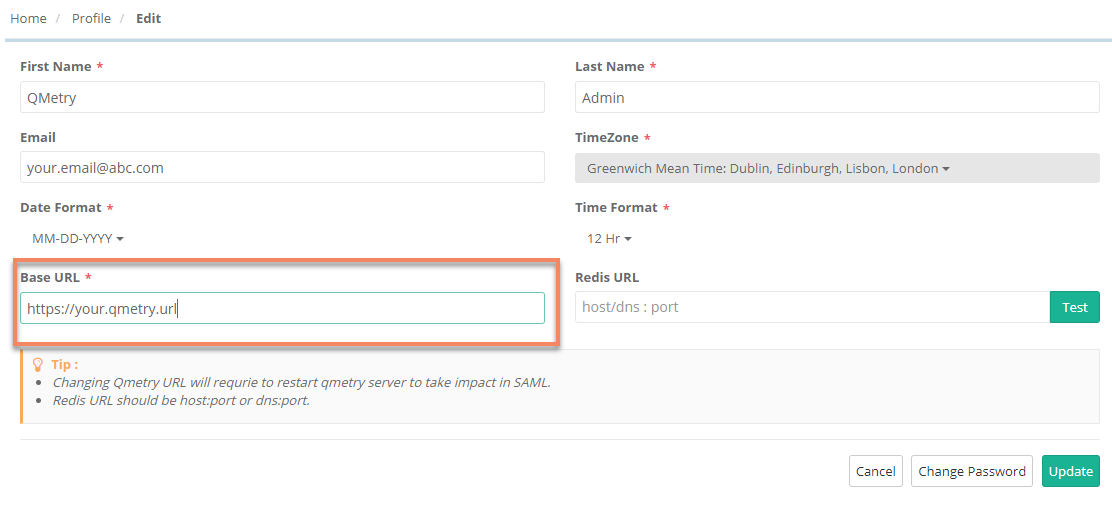

Step 7: Update the administrator profile
After you complete the previous steps, log in to the QMetry application and update the administrator profile.
Go to "Admin" Profile and Edit the Profile.
Update the administrator email address in the Email field.
In the Base URL field, enter your QMetry URL.
Select Update.
 |
Step 8: Configure additional Tomcat settings
QMetry installs with a default configuration for minimum and maximum heap memory. You can adjust these settings to match your hardware configuration. For more information, refer to Additional Configuration for more details.
Install QMetry Reports
Note
If you have purchased Advanced Reporting, then you will need a separate server for installing QMetry Reports.
Steps to Follow for QMetry Report Installation
To install QMetry Reports on the second server, perform the following steps:
Step 1: Get the installation zip file
Connect to the report server. Upload the QMetry_Linux_Installer.zip to the /opt directory of the Report server and extract it with the following commands.
sudo su - cd /opt unzip QMetry_Linux_Installer.zip cd QMetry_Linux_Installer/
Step 2: Run the reports installer
chmod +x install.sh ./install.sh
When the installer asks whether to perform an online installation, respond as shown in the following table.
Options | Allowed Values | Default Value | Recommended Value |
|---|---|---|---|
Do you want to make an online installation (Y/N)? | Y, y, N, n | Y | Y |
Enter the Docker credentials that were shared as part of the installation package. When the QMetry Installation Menu appears, enter 3 to install QMetry Reports.
Step 3. Enter the report configuration parameters
After the installation starts, enter the following parameters when prompted.
Options | Details | Default Value | Example |
|---|---|---|---|
Enter Number of CPU's to allocate | Allocate 3/4th of the available CPUs. For example, if CPU has 8 cores, enter 6. To check total CPUs, run the command : lscpu | 4 | 6 |
Enter Memory to allocate in GB(s) | Entered memory would be used by the sync job while running full sync of data. Enter 3/4th of total memory available on the server. For example, if the memory on the server is 24 GB, enter 18. | 4 | 18 |
Wait for the script file to finish executing.
Options | Details | Example |
|---|---|---|
Enter Mysql Database Host IP / DNS Name (Qmetry) | Enter Database Host Public IP/DNS of QMetry application. | Specify QMetry App RDS DB Endpoint |
Enter Mysql Database Port (Qmetry) | Enter Database Port of QMetry application. If it is unchanged, use "3306" as Database port. | 3306 |
Enter Mysql Database Schema (Qmetry) | Enter Database schema name of QMetry application. | qmetry |
Enter Mysql Database Username (Qmetry) | Enter Database username of QMetry application. If it is unchanged, use "root" as username. | root |
Enter Mysql Database Password (Qmetry) | Enter Database password of QMetry application. | QMetry@123 |
Enter Mysql Database Host IP / DNS Name (Reports) | Enter Database Host Public IP/DNS of QMetry Report. | Specify QMetry Reports RDS DB Endpoint |
Enter Mysql Database Port (Reports) | Enter Database Port of QMetry Report Database. If it is unchanged, enter "3306" as Database Port. | 3306 |
Enter Mysql Database Schema (Reports) | Enter Database schema name as “qtmanalytics“ for QMetry Reports Database. | qtmanalytics |
Enter Mysql Database Username (Reports) | Enter Database username of QMetry Reports Database. If it is unchanged, use "root" as username. | root |
Enter Mysql Database Password (Reports) | Enter Database password of QMetry Reports Database. | QMetryreports@!Nf0# |
Enter Port To Start SyncJob (Reports) | Reports Sync Job runs from this port - 8080. | 8080 |
Do you want to Run Force Sync Now? (y/n) | Enter y to sync all the QMetry data to Reports Database with the current script. Always enter y at the time of fresh reports install. Always enter y at the time of fresh reports install. | Y |
Enter Memory to allocate in GB(s) to Spark | Entered memory would be used by the sync job while running full sync of data. Enter 3/4th of total memory available on the server. For example, if the memory on the server is 24 GB, enter 18. | 18 |
After successful installation of QMetry Report, you will see the message "QMetry Report Installation is complete".
Note
In cases when you need to force sync to re-sync any missing data, just repeat step 4, and skip all parameter details (by hitting enter) and just enter y when prompted for a force sync.

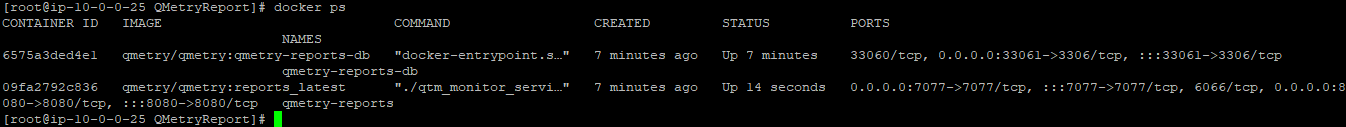

Step 4: Verify the docker
docker ps
Step 5: Restart Report Services
docker restart qmetry-reports
Wait for about 2 minutes before proceeding with the next step.

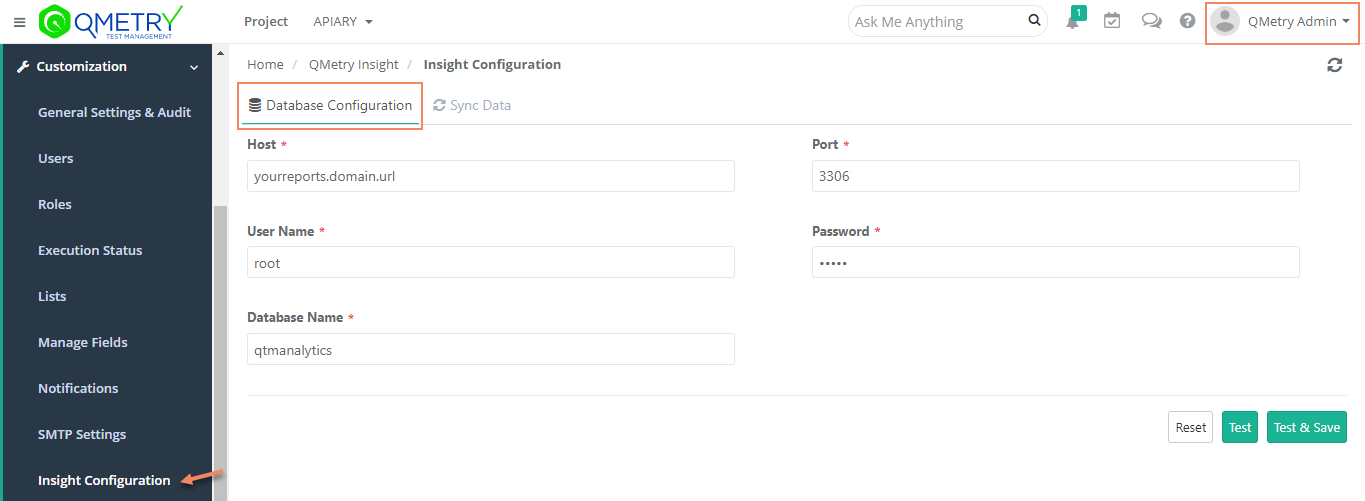

Step 6: Configure the database connection
Log into QMetry with 'admin' user login, and configure the reports server URL in the configuration menu.
Login to QMetry with administrator credentials and go to Customizations.
Select Insight Configuration and open Database Configuration tab.
Under Database Configuration tab, enter the following details:
Host: Reports Server Host Public IP/DNS.
Port: 3306
Username: root
Password : <Enter Report database password>
Database Name: <Report DB schema specified during installation>
Select Test to confirm a successful connection, and then select Test & Save.
Step 6: Set up the report data sync
On the Sync Data tab, set up the Report Data Sync from your reports server to QMetry Reporting.
Report Server URL: Enter your report server domain URL followed by port 8081. Confirm that port 8081 is open on the report server.
Select Test to confirm a successful connection and then select Test & Save.
Note
Run Sync Data the first time after you install QMetry reports installation. The time that the sync takes depends on the amount of data in QMetry. You can monitor sync progress and status in the interface. QMetry custom reports are not accessible while the sync runs. Run the sync only during off-peak hours.
Users can start using QMetry Reports when the sync is completed. QMetry remains available during this time.
Enabling Redis Caching Cluster (optional)
QMetry provides a capability for improving the overall performance and scalability even more by setting up Redis Caching Cluster. This step is optional. Follow the below steps to configure Redis Cache.
Create a Redis cluster using AWS ElastiCache service for the Redis v7.0.7
AWS ElastiCache Redis Cluster should be accessible to all the EC2 servers of QMetry application for caching related communication and configuration.
Ensure port #6379 is opened for incoming connections in the security group to allow connections from AWS EC2.
Port #6379 should be free and not in use by other applications.

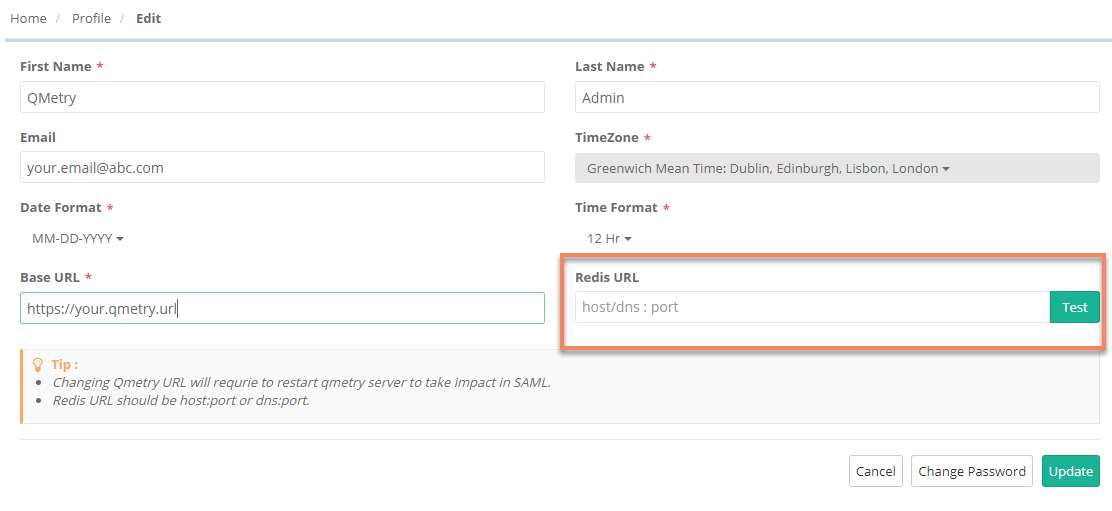

Configure Redis connection details in QMetry.
Login to QMetry Application using “admin“ account, and go to the top right corner admin > Profile section. Edit the Profile.
Enter the Redis URL and Test. In case, the test fails, check and ensure connectivity between ElastiCache Redis Cluster and AWS EC2.
Upon successful Test, update the details.
Install Automation API Features
Installing the Automation API with your on-premise QMetry installations will enable several automation API related features including faster automation result file imports into QMetry. If you plan to use Automation APIs to import test results into QMetry, refer to Install Automation API Feature for Offline Installations.
Get Support
Please generate a support ticket on the Support Portal for a detailed installation guide or contact your sales representative.
