QMetry and Reports Offline Installation on Linux - 2 Tier
This guide describes how to install QMetry Test Management application and QMetry Reports in a 2-tier Linux environment without an internet connection.
This document contains detailed steps regarding how to download QMetry application’s docker image and Report application’s docker image from the docker repository and how to move them to another machine for installation.
QMetry runs in Docker containers on Apache Tomcat 11.0.5, MySQL 8.4.8, and OpenJDK 17.0.2.
2-Tier Installation
The two-tier deployment uses two Linux servers. The following table lists the role of each server.
2 Tiers | Installations |
|---|---|
Server 1 | QMetry Application and QMetry Database |
Server 2 | QMetry Reports and and QMetry Report Database |
Pre-requisites
Confirm every item in the Pre-requisites for QMetry Application and Report Server Installation document. After that confirm the following:
Prerequisite | What to confirm |
|---|---|
Required commands | unzip, curl, and yum and Docker commands are supported. |
Operating System | Linux - Ubuntu 24.04, |
Docker Version | 20.10.13 |
Docker Compose Version | v2.40.0 |
Installation files | You have the QMetry_Linux_Installer.zip files and Docker credentials from QMetry Support. |
Root access | Docker installation requires root user access. To install using a non-root user, refer to Installing QMetry as a Standard User before starting the install on both QMetry and Report servers. |
Protocol | QMetry application and QMetry Report both should be configured either on https or http. If you are integrating Jira with QMetry, make sure QMetry and Jira should run on the same protocol. |
Storage | By default, docker manages storage under “/var/lib/” directory on the host machine. Ensure the required disk space is available as per the usage requirement of the QMetry application and Reports. |
In addition to this, ensure the following
Configure docker service on QMetry Application and Report servers to start automatically on reboot of servers.
The following Ports should be open:
Installation
Ports that need to be enabled and should be available for use
QMetry Application
80/443 & 3306
QMetry Reports
80/443, 8080 & 3306
Application and Report servers should be in the same network.
Report Server should be able to communicate with Application Server over 80/443 and Database Server 3306/DB Port.
Ports 8080 and 3306 should be enabled/open on Reports Server to allow connections from the QMetry application server.
Download Docker Images of QMetry
Follow these steps on the Internet-enabled machine to download QMetry and Report Docker images.

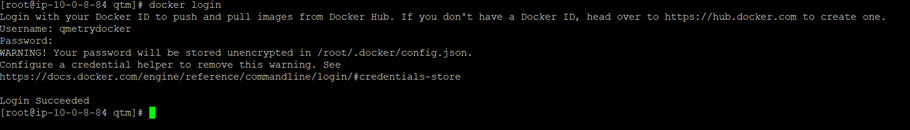

Docker Login
Contact QMetry Support if you do not have docker credentials.
docker login

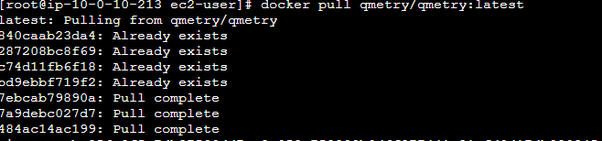

Pull QMetry Application Docker Image
docker pull qmetry/qmetry:latest
Verify the docker image has been downloaded successfully.
docker images
Save Application Docker Image
Save QMetry application’s docker image as .tar file. You can change the path of .tar file in the following command.
docker save -o /opt/qtm/qmetryapp.tar qmetry/qmetry:latest
Download and Save QMetry Report CDC and Sync Docker Images
Download the QMetry Report CDC Docker image.
docker pull qmetry/qmetry:cdc
Save the CDC image.
docker save -o /opt/qtm/qmetrycdc.tar qmetry/qmetry:cdc
Download the QMetry Report SymDocker image.
docker pull qmetry/qmetry:sync
Save the Sync image.
docker save -o /opt/qtm/qmetrysync.tar qmetry/qmetry:sync
Verify the docker images
docker images
Download and save QMetry Database docker image.
docker pull qmetry/qmetry:appdb848 docker save -o /opt/qtm/qmetrydb.tar qmetry/qmetry:appdb848 docker images
Download and save Report Database docker image
docker pull qmetry/qmetry:reportdb848 docker save -o /opt/qtm/qmetryreportdb.tar qmetry/qmetry:reportdb848 docker images
Transfer the qmetryapp.tar and qmetrydb.tar files
Transfer the
qmetryapp.tarandqmetrydb.tarfiles to the QMetry application server andqmetrycdc.tar,qmetrysync.tarandqmetryreportdb.tarfiles to the Report server.Load the images on the application server
Go to the directory containing the .tar file and run the following command.
# Load the transferred image tar files sudo docker load -i /opt/qtm/qmetryapp.tar sudo docker load -i /opt/qtm/qmetrydb.tar # Verify the images were restored correctly sudo docker images
Install QMetry Application
To install QMetry Application, perform the following steps:
Extract the installation files
Copy the QMetryApp.zip file that you received from QMetry Support to the server. Go to the directory that contains the file, and run the following command.
unzip QMetry_Linux_Installer.zip
Run the installer
cd QMetry_Linux_Installer sudo su chmod +x install.sh ./install.sh
Online Install Prompt
Options
Allowed Values
Default Value
Recommended Value
Do you want to make an online installation (Y/N)?
Y, y, N, n
Y
N
Docker Verification
Enter the docker credentials shared as a part of the installation package.

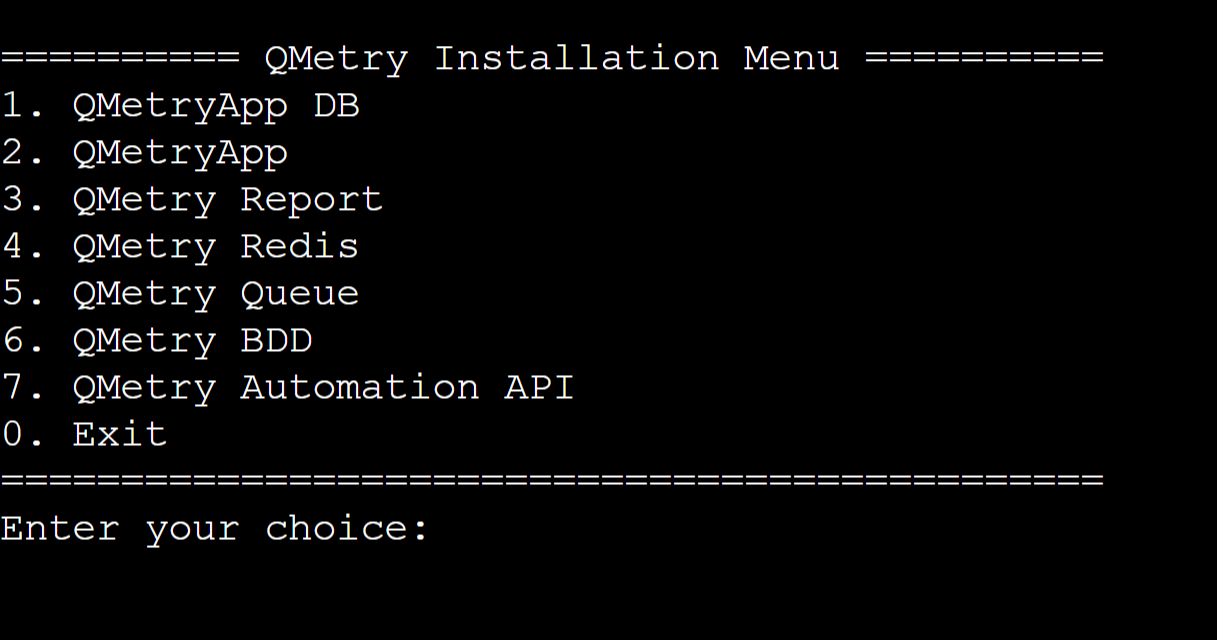

Main Installation Menu
Enter 2 to install the QMetry application.
Specify the application data directory
Enter a directory path on the host machine to store QMetry data such as attachments, licenses, imports, and exports. You can specify any valid path, and the installer creates the directory automatically if it does not exist.
Options
Example
Please enter QMetry application directory
/opt/qmetryapp
Enter the configuration parameters
Options
Details
Default Value
Example
Enter QMetry database schema
QMetryApplication Database schema name.
qmetry
qmetry
Enter QMetry database password for root user
Enter QMetryApplication Database Password for the root user.
-
QMetry@123
Enter Email for QMetryadmin user
Enter QMetryuser email address for Admin.
-
Enter password for QMetryadmin user
Enter QMetryuser password for Admin.
-
Admin@123
Enter Min. Heap Memory for the web server in GB
Enter Heap Memory in GB
2
2
Enter Max. Heap Memory for the web server in GB
Enter Heap Memory in GB
4
4
Enter QMetryDatabase Connection Pool Size
Enter Pool Size in number format
100
100
Installation may take a while. When it finishes QMetry displays the message "QMetry Application Installation is complete".
Type 0 to exit the installer.
Run the following command to confirm that the containers are running. Docker lists the installed containers with their container IDs and names.
docker ps
Get QMetry License and Install it
Choose the option that matches your license type.
For evaluating users
Use the evaluation license, valid for 30 days, that you received with the installation.
For commercial users
Find your MAC address
ifconfig (MAC address of Ethernet card for example eth0/eth1)
Send the domain name and MAC address to QMetry Support at qtmprofessional@qmetrysupport.atlassian.net to request your license.
Once you receive license.key from QMetry Support, you can follow the Steps to Apply License file .
Access the Application
Open the QMetry application in a browser at the following address, where you substitute your own value. http://<your IP address OR domain name>
Log in with the Default QMetry credentials.
Username: admin
Password: <user specified password in step 7>
The MySQL database is installed on port 3306 with the following details.
Username: root
Password: <user specified password in step 7>
Schema: <user specified Schema in step 7>

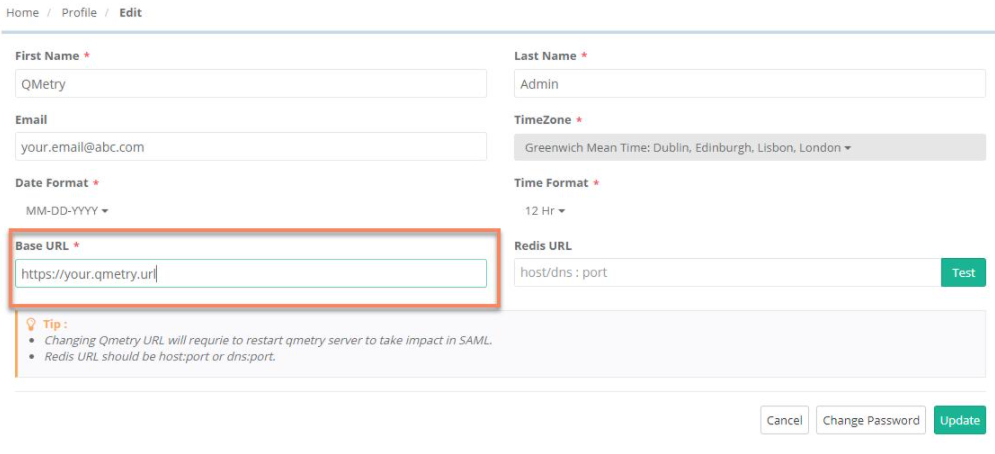

Update the administrator profile
After you complete the previous steps, log in to the QMetry application and update the administrator profile.
Go to "Admin" Profile and Edit the Profile.
Update the administrator email address in the Email field.
In the Base URL field, enter your QMetry URL.
Select Update.
Configure additional Tomcat settings
QMetry installs with a default configuration for minimum and maximum heap memory. You can adjust these settings to match your hardware configuration. For more information, refer to Additional Configuration for more details.
Note
Recommended: Back up the application data directory on a regular schedule. Periodic backups help prevent data loss if a disaster occurs.
Install QMetry Reports
Note
Reports installation require Redis Server and ActiveMQ Server. Refer to the Redis and Automation installation sections for setup steps.
Pre-requisites
Before you install QMetry reports, verify the following requirements.
QMetry App is installed and running.
QMetry App DNS/IP is configured in profile section.
Active MQ and Redis containers are running and configured in QMetry App.
The services are reachable from the report server: Redis (6379), ActiveMQ (61616, 8161), App (80, 443), App DB (3306).
Download Docker Images of Reports
Run the following command. When prompted, enter the Docker credentials. Contact QMetry Support to get your Docker credentials.
docker login

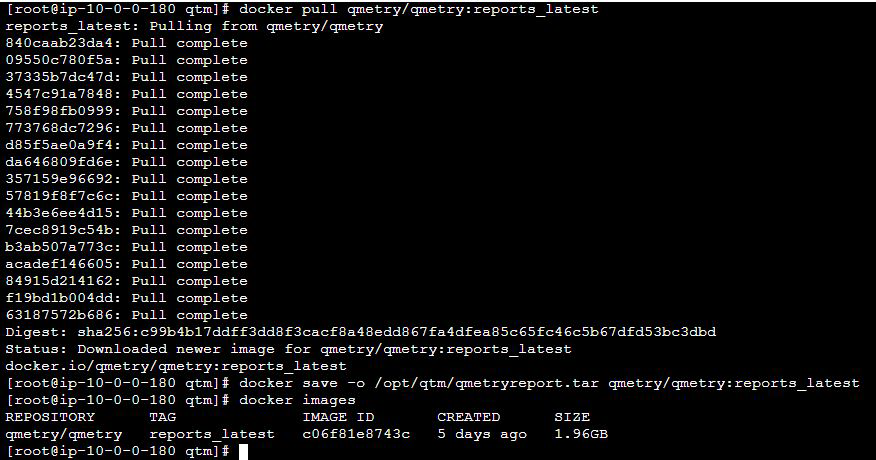

Download and save the report’s docker image.
docker pull qmetry/qmetry:cdc docker pull qmetry/qmetry:sync docker pull qmetry/qmetry:reportdb848
docker save -o /opt/qtm/qmetrycdc.tar qmetry/qmetry:cdc docker save -o /opt/qtm/qmetrysync.tar qmetry/qmetry:sync docker save -o /opt/qtm/qmetryreportdb.tar qmetry/qmetry:reportdb848 docker images
Transfer the
qmetrycdc.tar,qmetrysync.tar, andqmetryreportdb.tarfiles to the Report server.Go to the directory containing the .tar file and run the following command.
sudo docker load -i qmetrycdc.tar sudo docker load -i qmetrysync.tar sudo docker load -i qmetryreportdb.tar
Check whether the docker images have been restored correctly or not.
sudo docker images
Steps to Follow for QMetry Report Installation
To install QMetry Reports on the second server, perform the following steps:
Get the installation zip file
Connect to the report server. Upload the QMetry_Linux_Installer.zip to the /opt directory of the Report server and extract it with the following commands.
sudo su - cd /opt unzip QMetry_Linux_Installer.zip cd QMetry_Linux_Installer/
Run the reports installer
chmod +x install.sh ./install.sh
Online Install Prompt
Options
Allowed Values
Default Value
Recommended Value
Do you want to make an online installation (Y/N)?
Y, y, N, n
Y
N
Verify Docker
Enter the Docker credentials that were shared as part of the installation package.
Main Installation Menu
Type 3 to install QMetry Reports.
Enter the report configuration parameters
After the installation starts, enter the following parameters when prompted.
Options
Details
Example
Enter App Database Host URL
Enter Database Host Public IP/DNS of QMetry application.
10.0.8.166
Enter App Database Port
Enter Database Port of QMetry application.
3306
Enter App Database Username
Enter Database username of QMetry application.
root
Enter App Database Password
Enter Database password of QMetry application.
root
Enter App Database Schema Name
Enter Database schema name of QMetry application.
qmetry
Enter Report Database Host URL
Enter Database Host Public IP/DNS of QMetry Report.
10.0.8.221
Enter Report Database Port
Enter Database Port of QMetry Report Database.
3306
Enter Report Database Username
Enter Database username of QMetry Reports Database.
root
Enter Report Database Password
Enter Database password of QMetry Reports Database.
root
Enter Report Database Schema
Enter Database schema name of QMetry Reports Database.
qtmanalytics
Enter MQ URL
Enter MQ Active URL
tcp://10.0.8.166:61616
Enter MQ UserName
Enter MQ Username
admin
Enter MQ Password
Enter MQ Password
admin
Enter maximum memory to allocate for CDC app in GB
Maximum memory allocation for the CDC container:
Entered memory would be used by the sync job while running full sync of data.
Enter 25% of total memory available on the server. For example, if the memory on the server is 24 GB, enter 6.
A minimum of 4 GB memory must be allocated.
To check the total memory, run the command: free -h
4
Enter maximum memory to allocate for Sync app in GB
Maximum memory allocation for the Sync container:
Entered memory would be used by the sync job while running full sync of data.
Enter 70% of total memory available on the server. For example, if the memory on the server is 24 GB, enter 17.
A minimum of 8 GB of memory must be allocated.
To check the total memory, run the command: free -h
4
Enter number of CPU’s to allocate for CDC app
Number of CPUs to allocate for the CDC container. (The default is 4)
4
Enter number of CPU’s to allocate for Sync app
Number of CPUs to allocate for the Sync container:
Allocate 70% of the available CPUs. For example, if CPU has 8 cores, enter 6.
A minimum of 4 CPU cores must be allocated.
To check total CPUs, run the command : lscpu
4

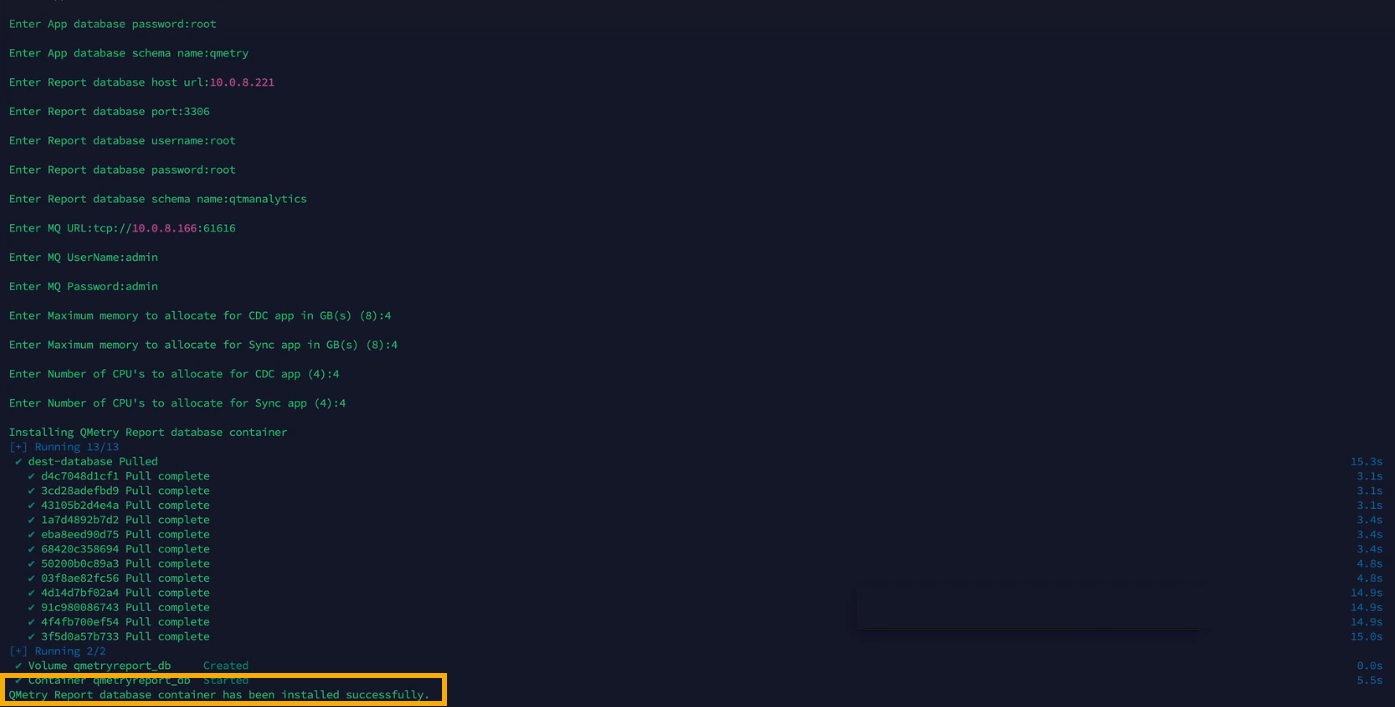

After QMetry creates the containers, the system runs a full sync. When the script finishes, QMetry displays the message "QMetry Report installation is complete".
Type 0 to exit the installer.

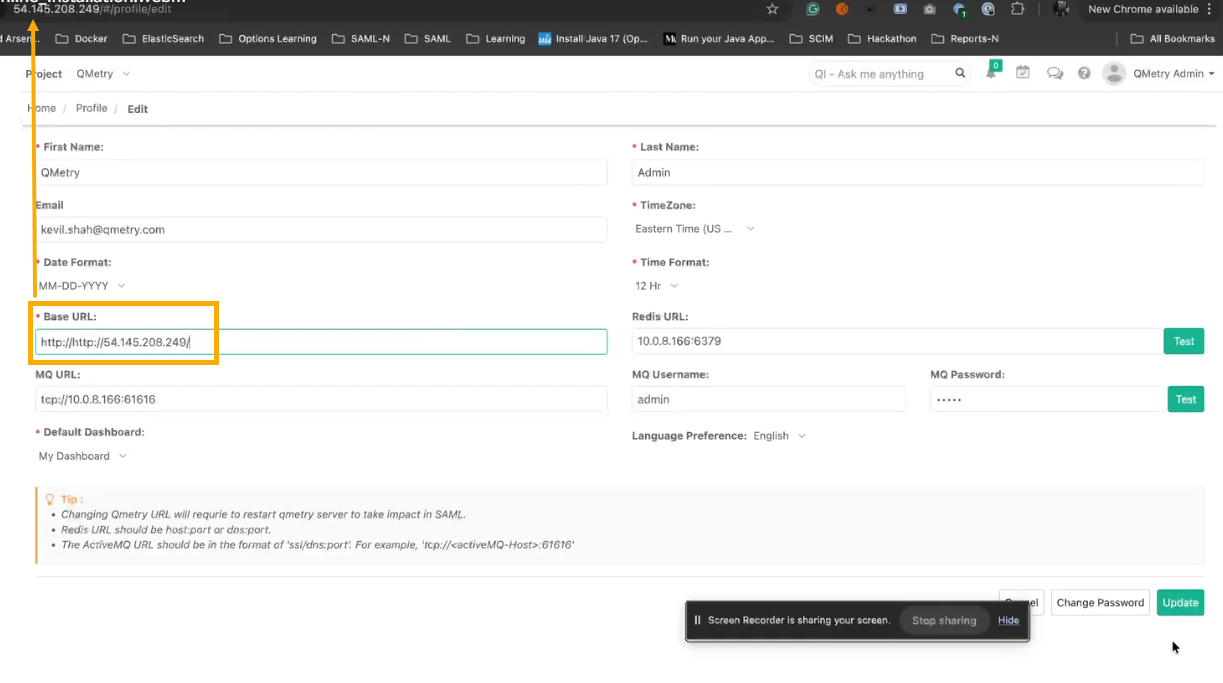

Update the Base URL
Log into QMetry and go to your Profile section, edit the Base URL with QMetry app URL. When the full sync is complete, exit the installation by entering 0.

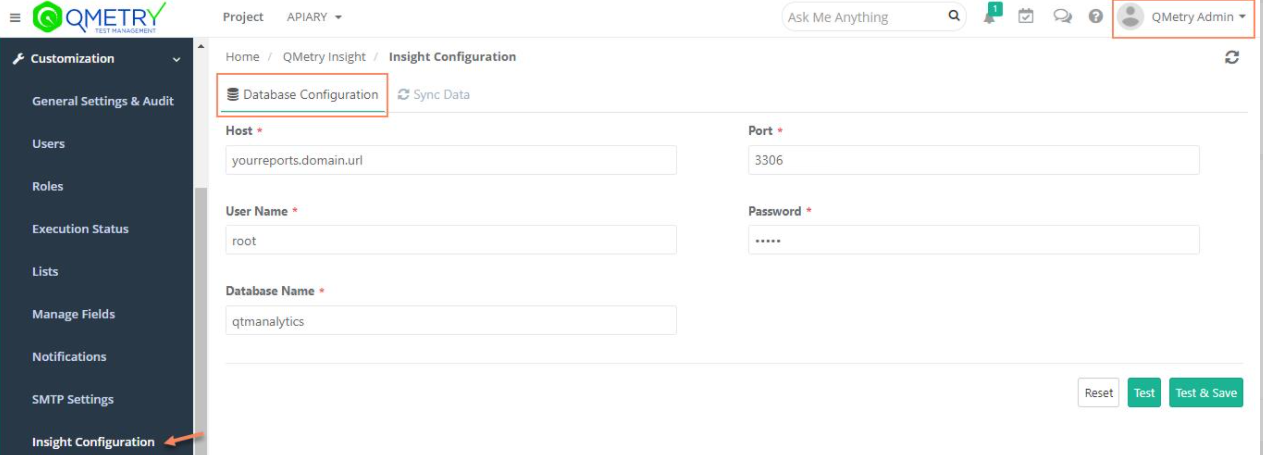

Configure the database connection

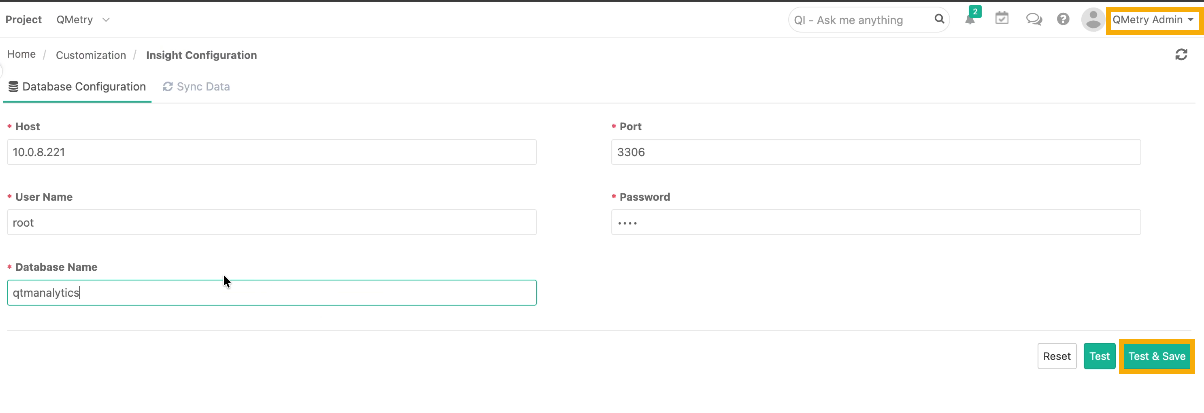

Configure the report database connection under Insight Configuration in the QMetry application. To configure the connection, perform the following steps:
Login to QMetry with administrator credentials and go to Customizations.
Select Insight Configuration and open Database Configuration tab.
Under Database Configuration tab, enter the following details:
Host: Enter Report Database Host URL from the report configuration table.
Port: 3306
Username: <Enter Report database username>
Password : <Enter Report database password>
Database Name: <Report DB schema specified during installation>
Select Test to confirm a successful connection, and then select Test & Save.

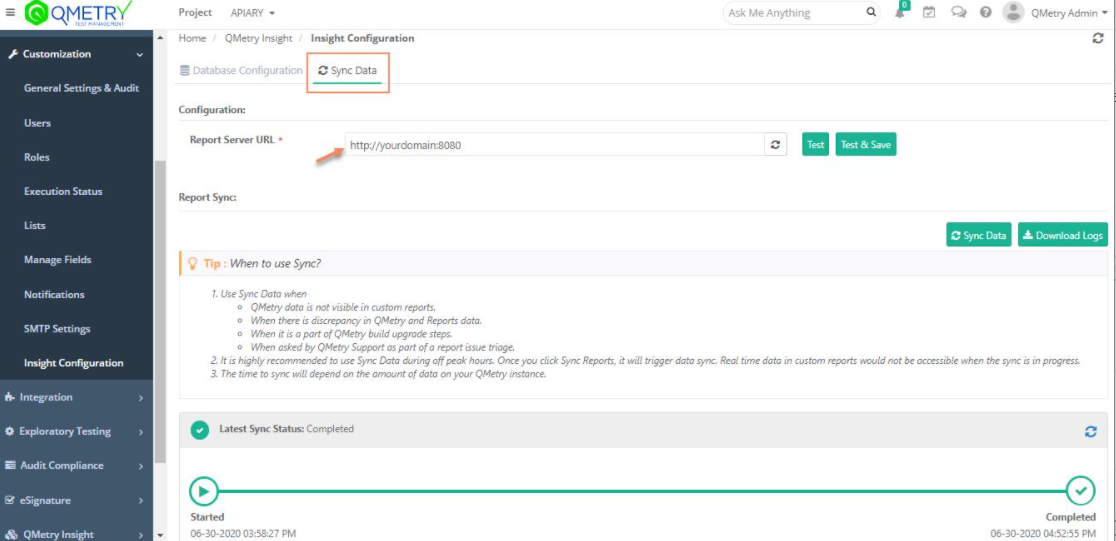

Set up the report data sync

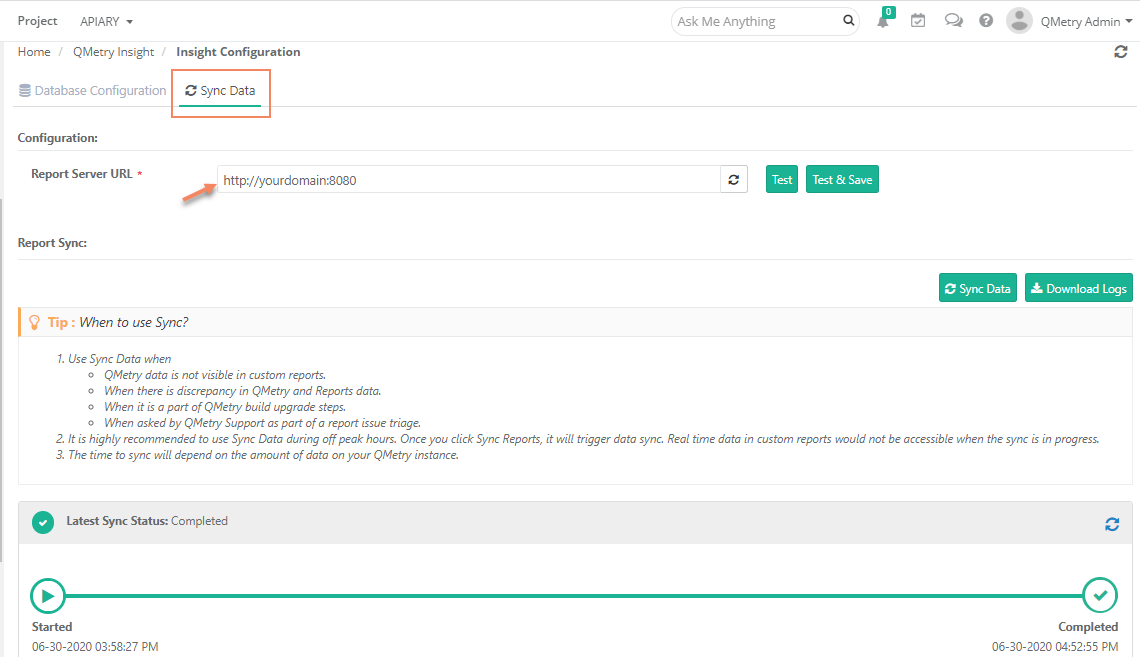

On the Sync Data tab, set up the Report Data Sync from your reports server to QMetry Reporting.
Report Server URL: Enter your report server domain URL followed by port 8080. Confirm that port 8080 is open on the report server.
Select Test to confirm a successful connection and then select Test & Save.
You can use QMetry Reports when the sync is completed. QMetry remains available during this time.
Note
Run Sync Data the first time after you install QMetry reports installation. The time that the sync takes depends on the amount of data in QMetry. You can monitor sync progress and status in the interface. QMetry custom reports are not accessible while the sync runs. Run the sync only during off-peak hours.
Install the Redis Caching Server
Redis caching improves overall performance and scalability. To install the Redis Server, refer to Installing Redis Caching Server.
Install Automation API Features
Installing the Automation API with your on-premise QMetry installations will enable several automation API related features including faster automation result file imports into QMetry. If you plan to use Automation APIs to import test results into QMetry, refer to Install Automation API Feature for Offline Installations.
Get support
If you are facing any issues during the installation process, kindly generate a support ticket on Support Portal for assistance.
