QMetry and Reports Installation on AWS (using RDS & ECR) for RHEL8, RHEL9 and RHEL10

This guide walks you through installing QMetry Test Management and QMetry Reports on Amazon Web Services (AWS) using AWS RDS for database services and AWS ECR for container image storage.

Architecture Overview

Component

Role

Server 1 — QMetry Application

Hosts the QMetry Test Management application container

 Server 2 — QMetry Reports

Hosts the QMetry Advanced Reporting container

AWS RDS 1 — QMetry App DB

MySQL v8.4.8 database for QMetry application data

AWS RDS 2 — QMetry Reports DB

MySQL v8.4.8 database for QMetry Reports data

Pre-requisites

Before beginning the installation, ensure all the following requirements are satisfied. For additional information on verifying pre-requisites, refer to the QMetry Knowledge Base.

Operating System & Server

  1. QMetry installation is supported on RHEL 8, RHEL 9, and RHEL 10 only. No other operating systems are certified. Rootless (non-root) installations are not supported on RHEL.

  2. Four servers are required:

    • 2 AWS RDS instances — one for QMetry Application DB, one for QMetry Reports DB

    • 1 EC2 server - QMetry Application

    • 1 EC2 server - QMetry Reports

  3. All servers must have the following utilities installed: unzip, wget, curl, and vim.

  4. Internet access must be enabled on all servers. It is required to download and install Podman and QMetry installation images.

  5. Ensure no proxy servers are blocking downloads from the internet.

  6. Firewall and SELinux must be disabled on all servers during QMetry installation.

  7. For Report installation, make sure you have details of Amazon MQ – Apache ActiveMQ instance ready.

Network & Port Requirements

The following ports must be open for incoming connections on their respective servers:

Server/Service

Required Ports

AWS RDS — QMetry Application DB

3306

AWS RDS — QMetry Reports DB

3306

AWS RDS — QMetry Application Server

80/443

AWS RDS — QMetry Reports Server

80 / 443, 8081, 3306

AWS EFS

2049

AWS ElastiCache (Redis — optional)

6379

Warning

  • Ports 80/443 and 3306 on their respective servers must not be in use by any other application.

  • Port 8080 must be open on the Reports Server to allow connections from the QMetry Application Server.

  • The QMetry App Server must also be able to communicate with the Reports Server on port 3306.

Storage

By default, Podman manages storage under the /var/lib/ directory on the host machine. The installer will prompt you to specify a storage location for QMetry application data during installation. Ensure sufficient disk space is available at both locations according to your expected usage.

Note

It is recommended to create the QMetry file system using the AWS EFS service so it can be shared across all QMetry application nodes.

Protocol Consistency

After installation, QMetry Application and the Reports tool must both be configured to use the same protocol — either http or https consistently.

Important

If you plan to integrate QMetry with Jira and Jira is running on https, QMetry must also run on https. Both applications must use the same protocol.

IAM Roles & ECR Authentication

Both the QMetry Application Server and the QMetry Reports Server must have appropriate IAM roles assigned to communicate with AWS services such as AWS ECR and AWS RDS.

Configuring AWS EC2 to Authenticate with AWS ECR

Install and configure the AWS Credential Helper. If you want to use AWS IAM Role-based authentication for ECR from your EC2 instances, follow this step. Otherwise, skip this step and ensure you have manually authenticated with AWS ECR from both the QMetry and Reports EC2 servers before proceeding.

(Reference: GitHub - awslabs/amazon-ecr-credential-helper: Automatically gets credentials for Amazon ECR on docker push/docker pull)

Installation Files

Obtain the following files from QMetry Support before beginning the installation:

  • QMetry_RHEL_Installer_ECR.zip

  • Podman credentials required for installation (provided with the installation package)

Placing QMetry and Report Podman Images on AWS ECR

Get Podman Image and place it on ECR. Perform these steps from the machine from which Docker Hub Container Image Library | App Containerization is accessible. It is required to have podman tool installed on this machine. Also, make sure that you have credentials for the ECR. In this step, we will download QMetry and Report podman image from podman repository and push it to the ECR repository.

Step 1. Log in to the Podman Repository

Execute the following command and enter the Podman credentials provided with your installation package when prompted.

podman login

Step 2. Pull the QMetry and Report Podman Images

Pull the three required images from the Podman repository:

podman pull docker.io/qmetry/qmetry:latest
podman pull docker.io/qmetry/qmetry:cdc_latest
podman pull docker.io/qmetry/qmetry:sync_latest

Step 3. Tag the Images with your ECR Repository URL

Replace <ECR_Repo_Url> with your actual ECR repository URL:

podman tag docker.io/qmetry/qmetry:latest <ECR_Repo_Url>/qmetryapp:latest
podman tag docker.io/qmetry/qmetry:cdc_latest <ECR_Repo_Url>/qmetryreport:cdc_latest
podman tag docker.io/qmetry/qmetry:sync_latest <ECR_Repo_Url>/qmetryreport:sync_latest

Step 4. Authenticate with AWS ECR

If you have already configured the AWS Credentials Helper utility on your EC2 servers, skip this step and proceed to Step 5.

Authenticate using the AWS CLI (if AWS CLI is installed and configured):

aws ecr get-login-password --region <regionID> | podman login --username AWS --password-stdin <ECR_Repo_Url>

Step 5. Push the Images to your ECR Repository

Push all three tagged images to ECR:

podman push <ECR_Repo_Url>/qmetryapp:latest
podman push <ECR_Repo_Url>/qmetryreport:cdc_latest
podman push <ECR_Repo_Url>/qmetryreport:sync_latest

Create and Configure AWS RDS Instances

This section guides you through creating and configuring two MySQL RDS instances — one for the QMetry Application database and one for the QMetry Reports database. Both instances share a common parameter group configuration that must be set up before creating the databases.

Create DB Parameter Groups

You need to create two separate DB parameter groups — one for the QMetry Application RDS and one for the QMetry Reports RDS.

  1. Open the AWS Management Console and navigate to the Amazon RDS console.

  2. In the navigation pane, select Parameter groups.

  3. Click Create parameter group.

  4. Configure the parameter group with the following settings:

    • Engine type: MySQL Community

    • Parameter group family: mysql8.4

    • Group name: Provide a descriptive name for the new DB parameter group.

    • Description: Provide a meaningful description.

  5. Click Create.

  6. Repeat this process to create a second parameter group for the Reports RDS.

Configure the APP RDS Parameter Group

Select Parameter Groups from the left panel and choose the App parameter group created in Step 1. Edit its parameters with the following values:

Parameter

Value

Description

binlog_format

ROW

Sets binary logging to row-based replication format

character_set_client

utf8mb4

Character set for client connections (supports full Unicode)

character_set_server

utf8mb4

Default server character set (supports full Unicode)

collation_server

utf8mb4_unicode_ci

Default server collation for Unicode comparison

connect_timeout

30

Seconds the server waits for a connect packet before timeout

group_concat_max_len

500000000

Maximum allowed result length for GROUP_CONCAT()

innodb_autoinc_lock_mode

2

Interleaved lock mode for high-concurrency inserts

innodb_log_buffer_size

536870912

InnoDB redo log buffer size (512 MB)

innodb_thread_concurrency

10

Max threads permitted inside InnoDB kernel

log_bin_trust_function_creators

1

Allows non-SUPER users to create stored functions with binary logging

log_output

FILE

Destination for general and slow query logs

lower_case_table_names

1

Stores table names in lowercase for case-insensitive lookups

max_allowed_packet

536870912

Maximum packet size for communication buffer (512 MB)

require_secure_transport

1

Enforces encrypted (SSL/TLS) connections to the server

restrict_fk_on_non_standard_key

OFF

Allows foreign keys on non-unique/non-primary key columns

sort_buffer_size

1048576

Buffer size allocated per session for sort operations (1 MB)

sql_mode

NO_ENGINE_SUBSTITUTION, STRICT_TRANS_TABLES, ERROR_FOR_DIVISION_BY_ZERO

SQL mode flags governing query validation and error handling

thread_cache_size

200

Number of threads cached for reuse by new connections

Configure the Report RDS Parameter Group

Select the Report parameter group created in Step 1. Edit its parameters with the following values:

Parameter

Value

Description

group_concat_max_len

500000000

Maximum allowed result length for GROUP_CONCAT()

innodb_autoinc_lock_mode

2

Interleaved lock mode for high-concurrency inserts

innodb_strict_mode

0

Disables strict InnoDB checks for compatibility

lower_case_table_names

1

Stores table names in lowercase for case-insensitive lookups

max_allowed_packet

536870912

Maximum packet size for communication buffer (512 MB)

require_secure_transport

1

Enforces encrypted (SSL/TLS) connections to the server

restrict_fk_on_non_standard_key

OFF

Allows foreign keys on non-unique/non-primary key columns

tmp_table_size

268435456

Max size of internal in-memory temporary tables (256 MB)

Create the QMetry Application RDS

  1. Create a new RDS instance with MySQL database version 8.4.8.

  2. Provide an RDS Name, Username, and Password.

  3. Under the parameter group settings, select the Application DB Parameter Group created in Step 4.2 above.

  4. Start the RDS service: navigate to RDS > Databases > Actions > Start RDS Service.

  5. Connect to the QMetry Application RDS and execute the following query. This ensures that MySQL binary logs are retained for 24 hours when the RDS restarts — which is essential for reliable Reports data synchronization.

    call mysql.rds_set_configuration('binlog retention hours', 24);

Save the following details for use during QMetry Application installation:

  • RDS username

  • RDS password

  • RDS database schema name

  • RDS endpoint

4.5 Create the QMetry Reports RDS

  1. Create a new RDS instance with MySQL database version 8.4.8.

  2. Provide an RDS Name, Username, and Password.

  3. Under the parameter group settings, select the Reports DB Parameter Group created in Step 4.3 above.

  4. Connect to the QMetry Reports RDS and create the reports database schema by executing the following query:

    CREATE SCHEMA `qtmanalytics` DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;

Save the following details for use during QMetry Reports installation:

  • RDS username

  • RDS password

  • RDS database schema name (qtmanalytics)

  • RDS endpoint

5. Installing the QMetry Application

5.1 Pre-Installation Recommendations

  1. Create a file system for QMetry using the AWS EFS service. This EFS can be shared across all QMetry Application nodes.

    • Ensure port 2049 is open for incoming connections in the security group to allow connections from your AWS EC2 instances.

  2. When creating the EC2 instance for the Application Server, go to Configure Storage &gt; File Systems > EFS and select the file system created in the previous step.

    • Refer to the AWS Official Documentation for attaching an EFS file system when creating an EC2 instance.

  3. Mount the EFS to an appropriate directory on the EC2 server. For example, if you choose /opt/qmetryapp as the target directory, specify this path when prompted during installation.

5.2 Installation Steps
Step 1. Extract the Installer Package

Copy the “QMetry_RHEL_Installer_ECR.zip” file received from QMetry Support to your server. Navigate to the directory containing the file and execute the following commands:

sudo su -
unzip QMetry_RHEL_Installer_ECR.zip
cd QMetry_RHEL_Installer_ECR
Step 2. Run the Installation Script

Execute the installation script:

chmod +x install.sh
./install.sh

The installer will prompt you with the following question:

Option

Allowed Values

Default Value

Do you want to make an online installation (Y/N)?

Y, y, N, n

Y

Enter docker repository URL

<Your ECR URL>

-

You will then be prompted for credentials. Enter the Podman credentials provided with your installation package.

Note

  • If the AWS server has the appropriate IAM permissions to pull the Podman image from ECR, the installation will proceed automatically.

  • Otherwise, the installer will prompt you to provide correct authentication details for the specified ECR URL.

Step 3. Select the QMetry Application Component

The installer will display options to install various QMetry components. Enter 1 to install the QMetry Application container and press Enter.


Step 4. Specify Application Data and Log Directories

The installer will prompt for the following directory paths:

Prompt

Description

Example

Please enter QMetry application directory

Enter the EFS-mounted directory path for storing QMetry application files (attachments, license, import/export files, etc.)

/opt/qmetryapp

Please enter QMetry application log directory

Enter a directory path for QMetry application log files. This directory must NOT be shared across multiple nodes.

/opt/qmetrylogs

Important

It is recommended to take periodic backups of the application data directory to prevent data loss in the event of a disaster.

Step 5. Enter QMetry Database and Application Parameters

Once the script has completed extracting files, it will prompt for the following configuration parameters. Have your RDS details from Section 4 ready.

Parameter

Description

Default

Example

Enter QMetry Database Hostname

QMetry Database Host as DNS/IP Address (RDS Endpoint)

<RDS DB Endpoint>

<RDS DB Endpoint>

Enter QMetry Database Port

Database port — use 3306 unless changed

3306

3306

Enter QMetry Database Schema

QMetry Application Database schema name

qmetry

qmetry

Enter QMetry Database Username

QMetry Application Database root username

-

dbadmin

Enter QMetry Database Password

QMetry Application Database root password

—

QMetry@123

Enter Email for QMetry admin user

Admin user email address

—

admin@qmetry.com

Enter password for QMetry admin user

Admin user password

—

Admin@123

Enter Min. Heap Memory (GB)

Minimum heap memory for the web server in GB

2

2

Enter Max. Heap Memory (GB)

Maximum heap memory for the web server in GB

4

4

Enter QMetry DB Connection Pool Size

Database connection pool size

100

100

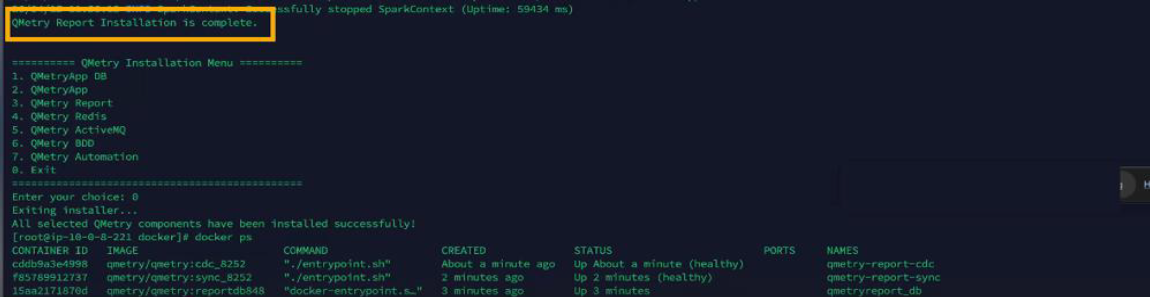

The installation may take several minutes to complete. Upon successful completion, you will see the message:

QMetry Application installation is complete.

Step 6. Exit the Installer

Enter 0 to exit the installation menu.

Step 7. Obtain and Apply Your QMetry License

Evaluation License:

If you are evaluating QMetry, an evaluation license valid for 30 days should have been included with your installation package.

Commercial License:

To generate a commercial license, QMetry Support requires your server's domain name and MAC address. Follow these steps:

  1. Execute the following command to retrieve your server's MAC address:

    ifconfig # Note the MAC address of the Ethernet card, e.g., eth0 or eth1

  2. Send the MAC address and the server's domain name to QMetry Support at: qtmsupport@smartbear.com.

  3. Once you receive the license.key file, apply it following the Steps to Apply License documentation

Step 8. Access the QMetry Application

Access the QMetry application in your web browser using the following URL:

http://<your-IP-Address-or-Domain-Name>

Use the following default credentials to log in for the first time:

Field

Value

Username

admin

Password

<Password specified in Step 5 above>

Step 9. Complete the Admin Profile Configuration

After logging in as admin, complete the following configuration:


  1. Navigate to the top-right corner and click Admin > Profile > Edit Profile.

  2. Update the Email field with the correct admin email address.

  3. Enter the Base URL — set this to your QMetry server URL.

  4. Save the changes.

Step 10. Optional: Adjust Tomcat Heap Memory

QMetry is installed with default minimum and maximum heap memory settings. These can be modified based on your hardware configuration. Refer to the Additional Configuration documentation for details.

6. Installing QMetry Reports

This section applies only if you have purchased the QMetry Advanced Reporting add-on. A dedicated server is required for the Reports installation.

Step 1. Extract the Installer Package

Copy the “QMetry_RHEL_Installer_ECR.zip” file received from QMetry Support to your Reports server. Navigate to the directory containing the file and execute the following commands:

sudo su -
unzip QMetry_RHEL_Installer_ECR.zip
cd QMetry_RHEL_Installer_ECR

Step 2. Run the Installation Script

Execute the installation script:

chmod +x install.sh
./install.sh

The installer will prompt you with the following question:

Option

Allowed Values

Default Value

Do you want to make an online installation (Y/N)?

Y,y,N,n

Y

Enter docker repository URL

<Your ECR URL>

-

You will then be prompted for credentials. Enter the Podman credentials provided with your installation package.

Note

  • If the AWS server has the appropriate IAM permissions to pull the Podman image from ECR, installation will continue automatically.

  • Otherwise, the installer will prompt you to provide correct ECR authentication details.

Step 3. Select the QMetry Reports Component and Enter Configuration

When the installer displays the component selection menu, enter 2 to install the QMetry Reports container.


The installer will then prompt for the following configuration parameters. Have your RDS details for both databases ready.

Parameter

Description

Example

Enter App Database Host URL

Hostname or IP address of the QMetry Application DB (RDS Endpoint)

10.0.8.166

Enter App Database Port

Port for the QMetry Application Database

3306

Enter App Database Username

Username for the QMetry Application database

root

Enter App Database Password

Password for the QMetry Application database

root

Enter App Database Schema Name

Schema name of the QMetry Application database

qmetry

Enter Report Database Host URL

Hostname or IP address of the QMetry Reports DB (RDS Endpoint)

10.0.8.221

Port for the QMetry Reports database

Port for the QMetry Reports database

3306

Enter Report Database Username

Username for the QMetry Reports database

root

Enter Report Database Password

Password for the QMetry Reports database

root

Enter Report Database Schema

Schema name of the QMetry Reports database

qtmanalytics

Enter MQ URL

ActiveMQ URL of the QMetry Application server

tcp://10.0.8.166:61616

Enter MQ Username

Enter MQ Username

admin

Enter MQ Password

Enter MQ Username

admin

Max memory for CDC app (GB)

Maximum memory allocation for the CDC container:

  • Entered memory would be used by the sync job while running full sync of data.

  • Enter 25% of total memory available on the server. For example, if the memory on the server is 24 GB, enter 6.

  • A minimum of 4 GB memory must be allocated.

  • To check the total memory, run the command: free -h

4

Max memory for Sync app (GB)

Maximum memory allocation for the Sync container:

  • Entered memory would be used by the sync job while running full sync of data.

  • Enter 70% of total memory available on the server. For example, if the memory on the server is 24 GB, enter 17.

  • A minimum of 8 GB memory must be allocated.

  • To check the total memory, run the command: free -h

8

CPUs for CDC app

Number of CPUs to allocate for the CDC container

4

CPUs for Sync app

Number of CPUs to allocate for the Sync container:

  • Allocate 70% of the available CPUs. For example, if CPU has 8 cores, enter 6.

  • A minimum of 4 CPU cores must be allocated.

  • To check total CPUs, run the command : lscpu

4

Upon successful completion, you will see the message &amp; 2 containers installed as below:


Step 4. Exit the Installer

Enter 0 to exit the installation menu.

Step 5. Configure Insight Configuration in the QMetry Application

After installation, configure the database connection from within the QMetry Application:


  1. Log in to QMetry Application with admin credentials.

  2. Navigate to Customizations > Insight Configuration > Database Configuration tab.

  3. Enter the following connection details:

    • Host: Enter the Report Database Host URL

    • Port: 3306

    • Username: <Report database username>

    • Password: <Report database password>

    • Database Name: <Report DB schema name specified during installation>

  4. Click Test to verify the connection. Upon a successful test, click Test & Save to save the configuration.

Step 6. Set Up Report Data Sync

Under the Sync Data tab within Insight Configuration, configure the Report Data Sync from your Reports server to QMetry Reporting:


  1. In the Report Server URL field, enter your Reports server domain URL followed by port 8081. For example: http://<reports-server-domain>:8081

  2. Click Test to verify the connection, then click Test & Save.

Warning

Ensure port 8081 is open on the Reports Server before testing the connection.

Note

Your QMetry and Reports installation is now complete.

Step 7. Enabling Redis Caching Cluster (Optional)

QMetry supports Redis Caching to improve overall application performance and scalability. This step is optional and can be performed at any time after the base installation.

  1. Create a Redis cluster using the AWS ElastiCache service. Use Redis version 7.1.0.

  2. Ensure the AWS ElastiCache Redis Cluster is accessible to all QMetry Application EC2 servers:

    • Port 6379 must be open for incoming connections in the security group to allow connections from AWS EC2.

    • Port 6379 must not be in use by any other application on the server.

  3. Configure the Redis connection within the QMetry Application:

    • Log in to QMetry Application using the admin account.

    • Go to the top-right corner: Admin > Profile > Edit Profile.

    • Enter the Redis URL in the provided field and click Test.

    • If the test fails, verify network connectivity between the AWS ElastiCache Redis Cluster and your EC2 instances.

    • Once the test succeeds, save the configuration.

Step 8. Installing Automation API Features (Optional)

Installing the Automation API alongside your QMetry installation enables several automation-related features, including faster automation result file imports into QMetry.

If you plan to use Automation APIs to import test results into QMetry, refer to the Installation for Automation API documentation available on the QMetry Support Portal.

Troubleshooting & Support

If you encounter any issues during the installation process, please create a support ticket on the QMetry Support Portal for assistance.

Contact

Details

QMetry Support Portal

https://support.qmetry.com

QMetry Professional Support Email

qtmsupport@smartbear.com

In this section:
© 2026
Publication date:
